High-Speed Fold-Up Packing Door (non-counterweighted)
Modern aesthetics with no counterweight systems
Efficient packing
Reduced footprint
Suitable for various industrial environments
Aesthetic and functional customisation
TECHNICAL INFORMATION

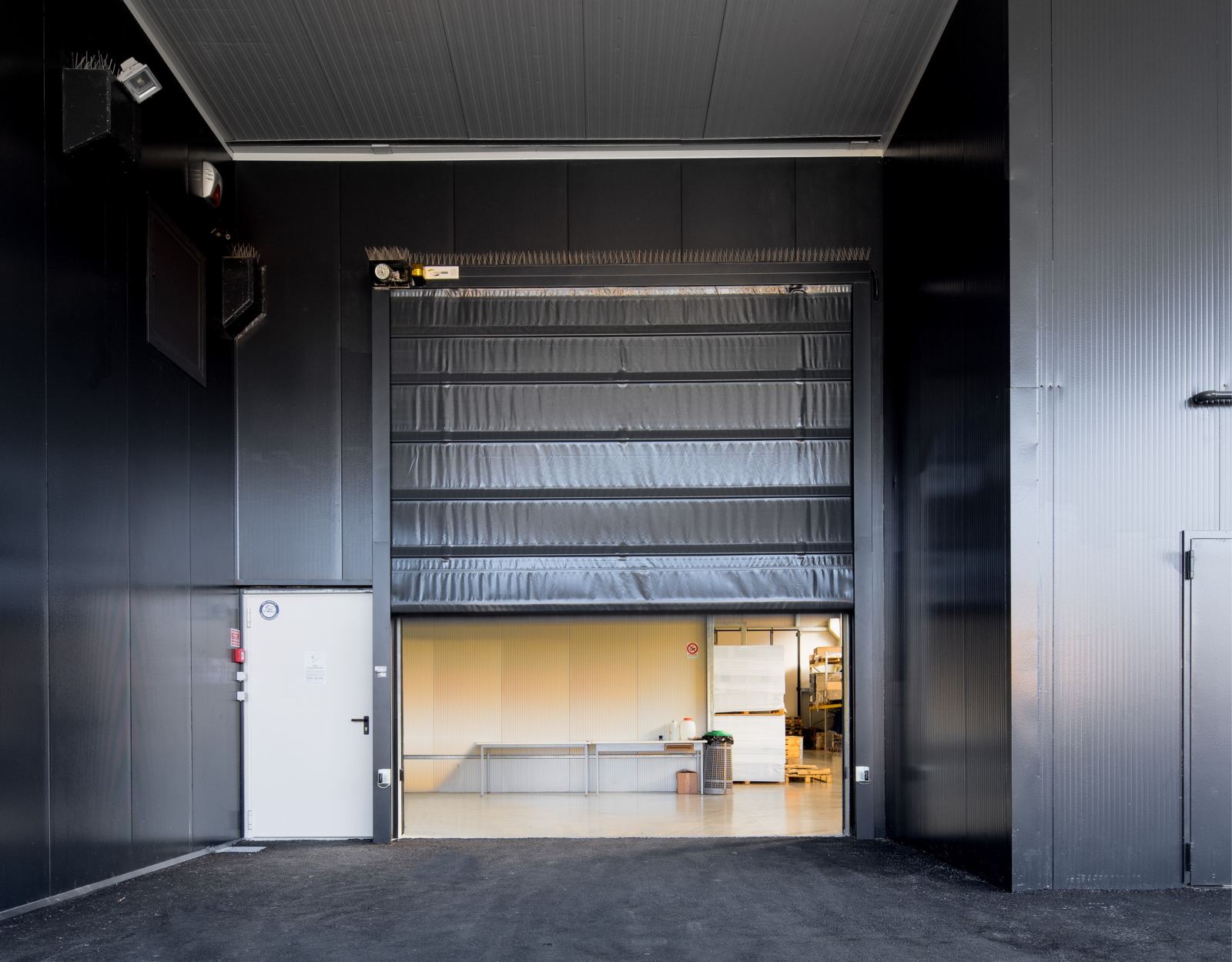

The GEMMA non-counterweighted high-speed fold-up packing Door is the ideal solution to ensure a quick and easy access to means of transport, even big ones, in your establishment. It guarantees good thermal insulation and weather protection thanks to the robustness of the tarpaulin and gaskets, and the wide range of RAL colours enhances the possibility of customisation by adapting it to all contexts.
Non counterweighted fold-up packing door - the standard configuration includes:
glazed sections with a height of 505 mm (one row of portholes located in the 4th sector from the bottom);
control unit with double up+down button plus emergency push button;
pair of external photocells;
no safety edge strip;
galvanised steel frame;
680 g/m2 tarpaulin available in the colour shades shown in the table below;
manual movement rod completed with support bracket and relative safety microswitch (when the rod is lifted, power is cut off to the control unit).

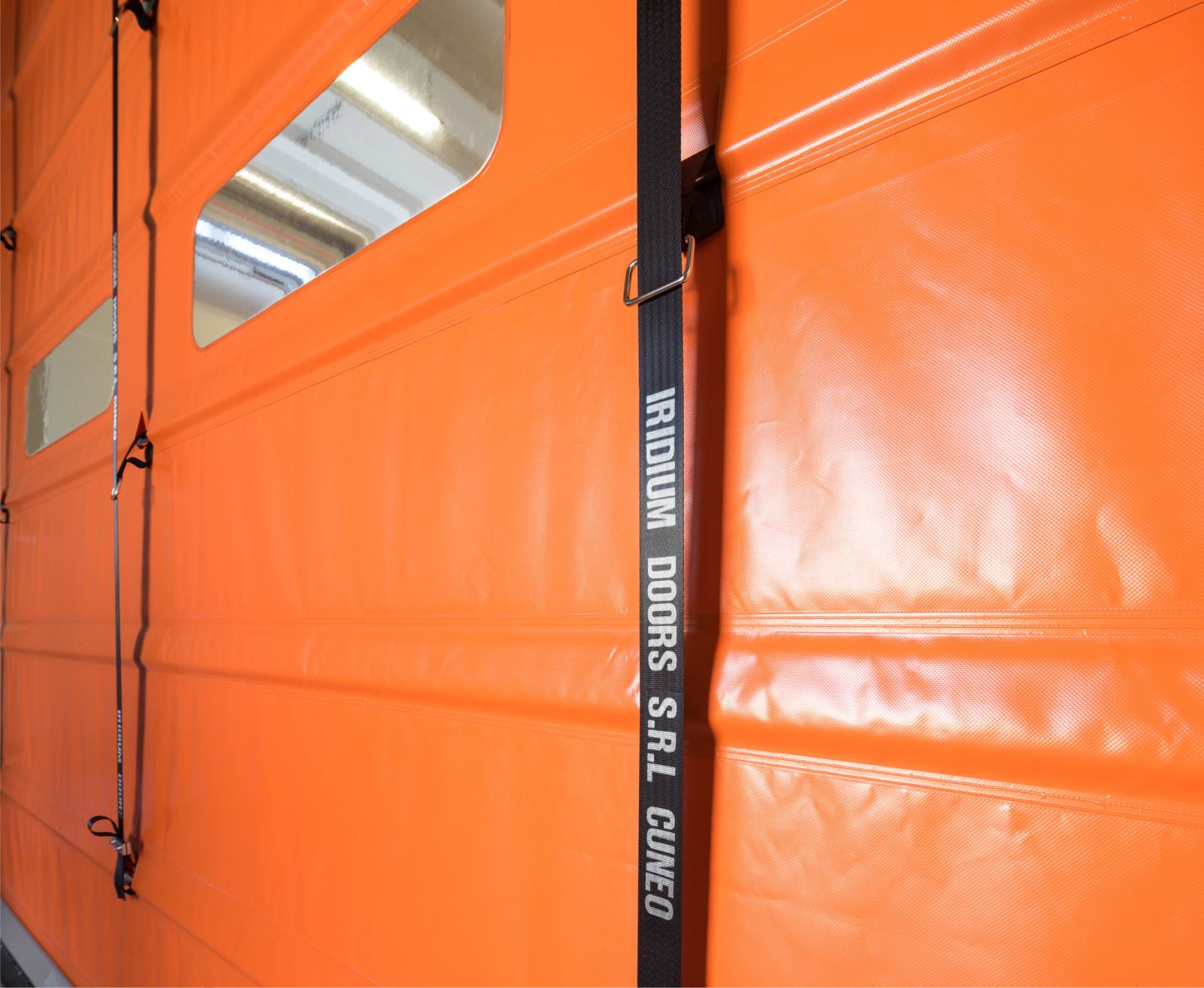

The IRIDIUM DOORS Gemma high-speed fold-up packing Door features a standard 680 g/m2 thick tarpaulin.
Standard tarpaulin colour table - Standard thickness: 680 g/m2
Control unit with double up + down button and emergency push-button with partial movement and door lock.
Safety edge strip, a must-have accessory for doors with automatic functioning.
Stainless steel frame upon request.
Discover the accessories available for the IRIDIUM DOORS High-Speed Fold-Up Packing Doors
Tarpaulin accessories
Motorisation and security systems accessories
Door accessories
