Home \ Industrial Doors \ High-Speed Doors \ Diadema
High-speed fold-up packing door (counterweighted)
Well-balanced and sturdy even with strong winds
Durable materials for intensive use
Structure reinforced against mechanical stress
Low maintenance
Combines beauty with high performance
TECHNICAL INFORMATION

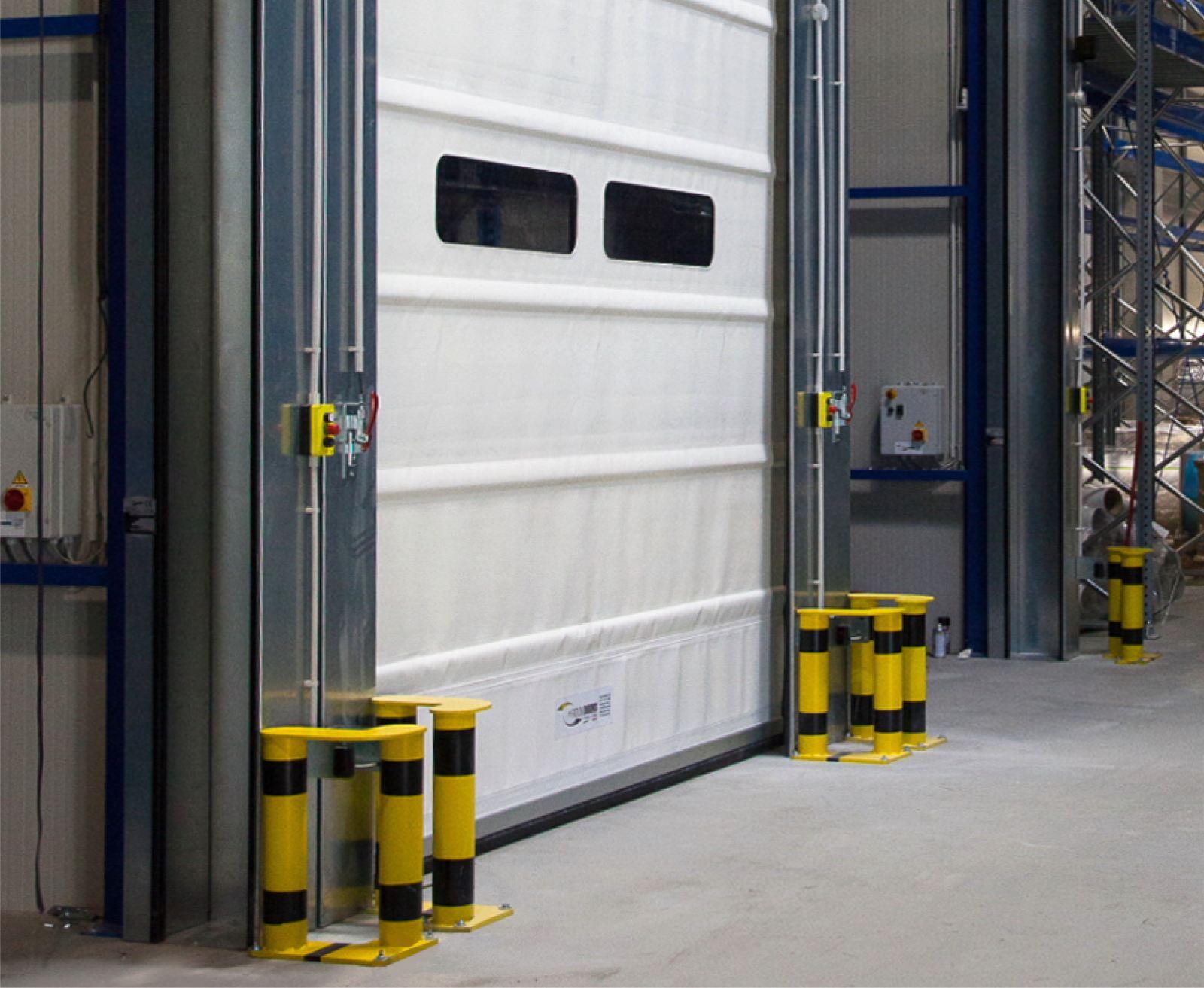

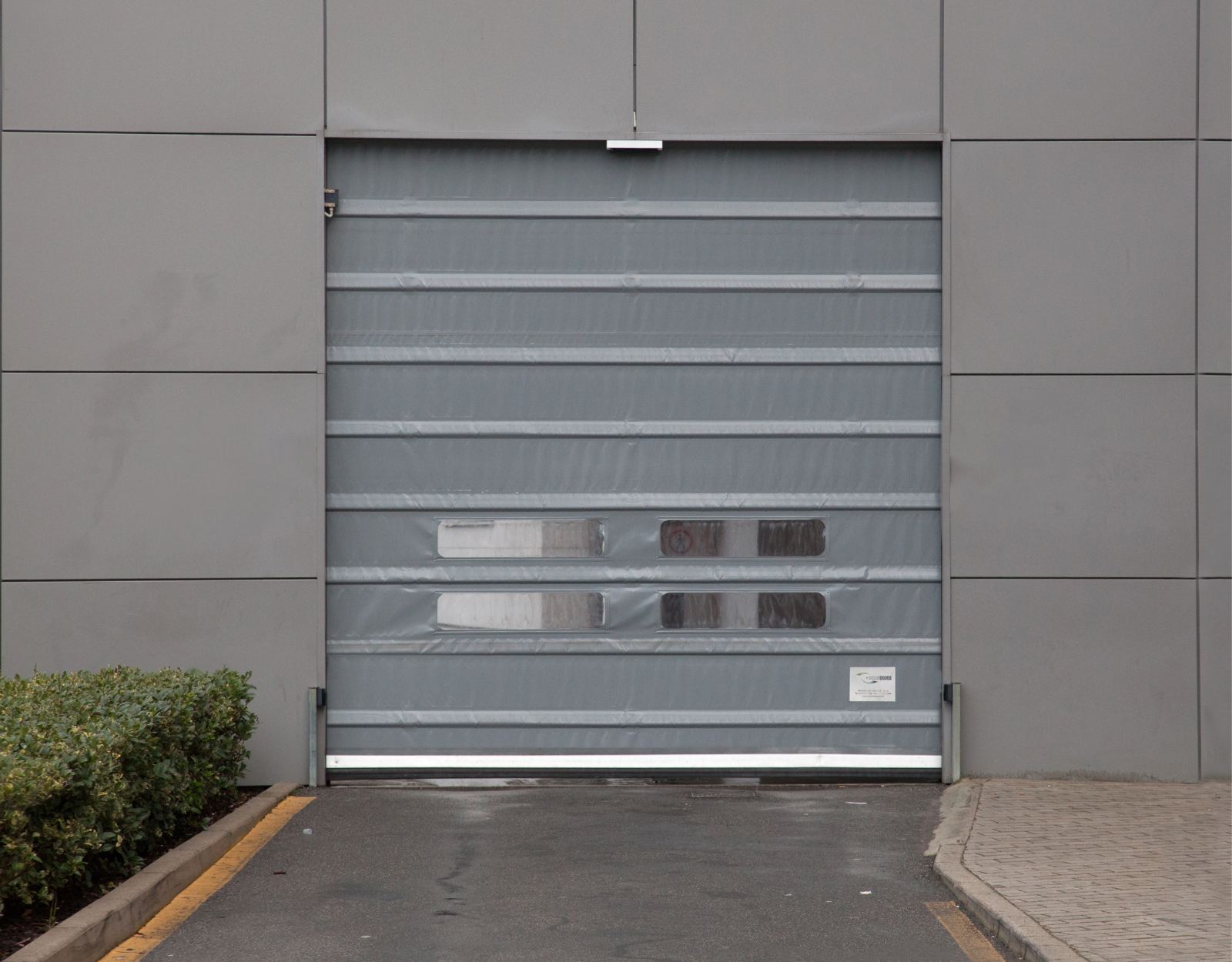

The DIADEMA counterweighted high-speed fold-up packing door is perfect for closing entrances in companies or institutions where there are many vehicles in transit. Equipped with a resistant tarpaulin, it is available in various colours and can be customised with portholes to allow the passage of natural light. Accessories and security systems extend the customisation possibilities according to requirements.
The standard configuration includes:
Glazed sections with a height of 505 mm (row of portholes located in the 4th section from the bottom);
control unit with double up+down push-button plus emergency push-button;
pair of external photocells;
no safety edge strip;
galvanised steel frame;
680 g/m2 tarpaulin available in the colour shades shown in the table below;
release lever kit (allows the counterweights to be activated and the consequent partial opening of the door).
The IRIDIUM DOORS Diadema model high-speed fold-up packing door features a standard tarpaulin in the thickness of 680 g/m2.
Standard tarpaulin colour table - Standard thickness: 680 g/m2
Safety edge strip, a must have for doors with automatic functioning.
Stainless steel frame upon request.
Discover all the accessories for the IRIDIUM DOORS High-Speed Fold-Up Packing Doors
Full opening in case of emergency
Automatic opening in case of power failure
Tarpaulin accessories
Motorisation and security systems accessories
Door accessories
