The pedestrian door stylish on its own and also in combination with the IRIDIUM DOORS sectional door or tilting door
One or several leaves
Solid as the Sectional door
Insulated panels
Customisable colours and finishes
High aesthetic and functional value
TECHNICAL INFORMATION

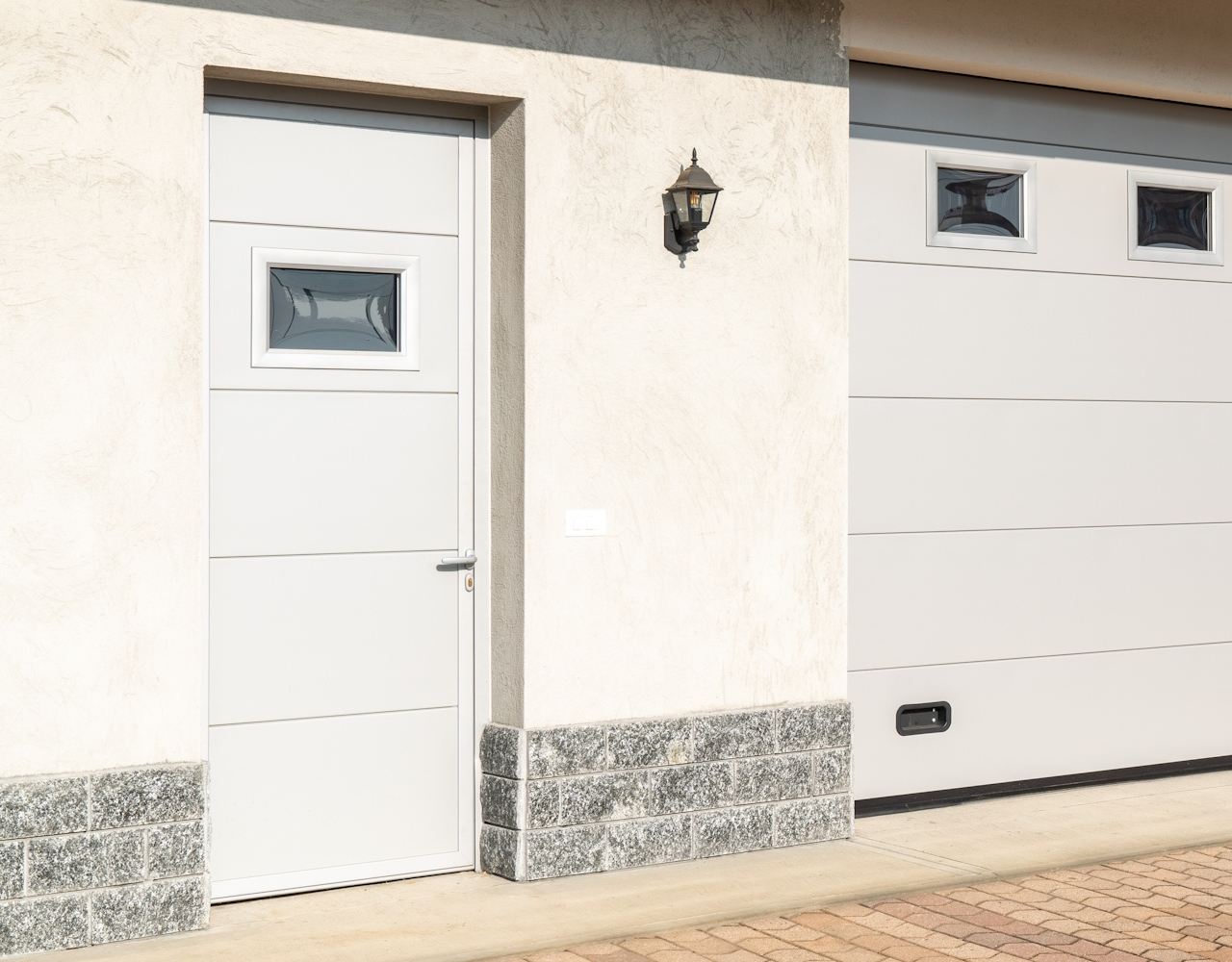

The SOLE door is an elegant one- or two-leaf pedestrian access door with an aluminium frame and 4 cm thick insulated sectional panels.
It is used in residential, commercial and industrial applications. It can be customised to match the sectional door or tilting door, integrating perfectly with the design and features of the door, giving a refined and balanced aesthetic effect to the entire property.
Material: Aluminium
Air permeability: Class 4
Water tightness: Class E 1200
Wind resistance: Class CS
System for non-insulated windows
CE marked casement series
Open joint or double casement sealing system
SECRET concealed hardware up to 150 kg capacity
The SOLE pedestrian door panels are insulated panels, like the sectional doors, composed of two aluminium metal sheets that provide rigidity and protection. The inner core is composed of high-density polyurethane foam, injected between the two layers, providing thermal insulation and lightweight.

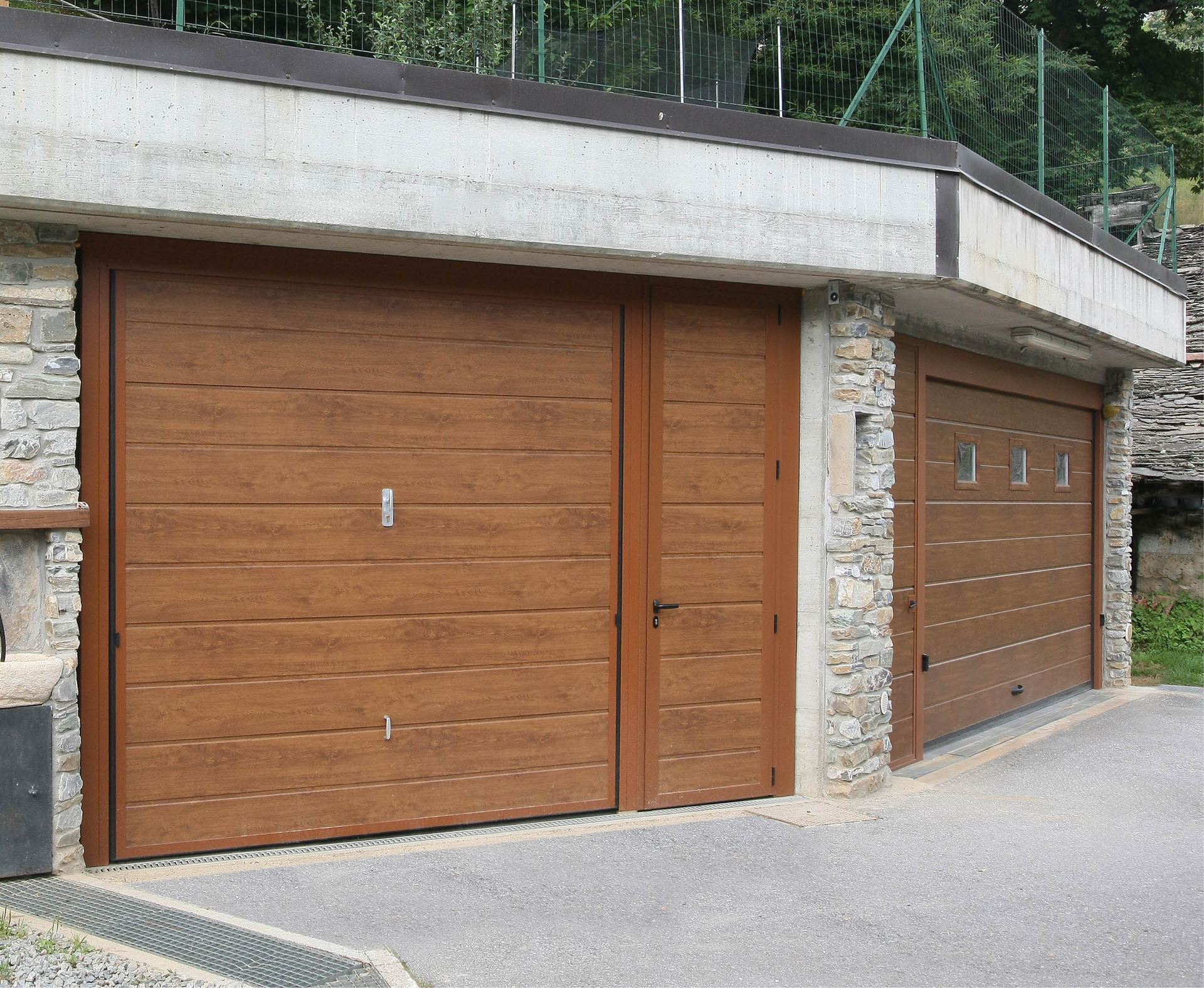

The wide range of panel types, finishes and colours offers a high degree of customisation and perfect integration with the context in which it is installed. It can be customised on its own or in combination with the sectional door or tilting door, with one or two leaves.
It is possible to further customise the SOLE pedestrian door by inserting portholes of various shapes and sizes while preserving the performance of the SOLE frame.
Hardware
